HDPE Double Wall Corrugated Pipe Machine – Advanced DWC Pipe Corrugator Forming Unit

Name: DWC Pipe Corrugator – HDPE Double Wall Corrugated Pipe Machine
Brand: Wings Plastic

The industry benchmark for massive infrastructure pipe production. Each DWC pipe corrugator forming unit is engineered with robust frames, advanced servo-driven transmissions, and high-efficiency cooling to guarantee stable, high-speed shaping for any underground sewage pipe extruder or corrugated drainage pipe making machine requirement.

Heavy-duty DWC pipe corrugator forming unit – HDPE double wall corrugated pipe machine

Advanced DWC Pipe Corrugator Series

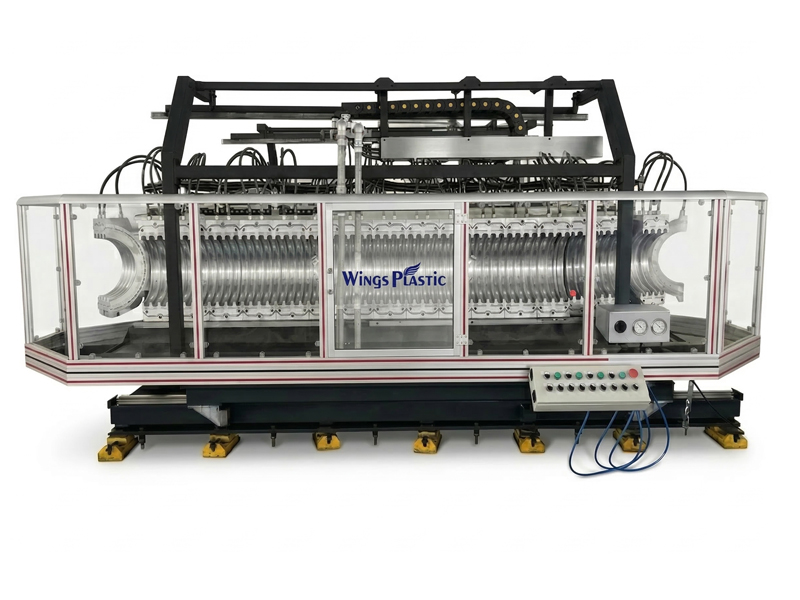

High-speed DWC pipe corrugator for HDPE underground drainage pipe production

High-Speed DWC Pipe Corrugators

Drive System: 4 independent servo motors driving left and right synchronously for flawless HDPE pipe profiles.
Structure: Sliding bases utilize QT600-3 ductile iron, guaranteeing no deformation during continuous heavy pipe extrusion.
Cooling: Pressurized water cooling (paired with aluminum alloy blocks) for ultra-high DWC pipe corrugator efficiency.
Performance: Special transmission structure reduces die head length for smaller sizes, maximizing high-speed output.

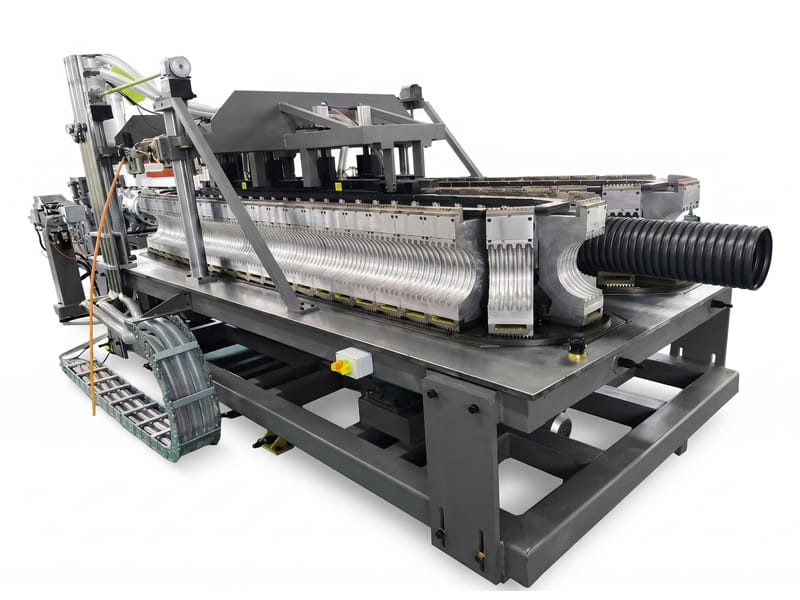

Medium-speed double wall pipe corrugator for HDPE sewage pipe forming

Medium-Speed Pipe Corrugators

Core Material: Heat-treated base plates with 38CrMoAl nitrided slide blocks for a long machinery lifespan.
Vacuum Tech: Dual vacuum channels efficiently solve incomplete pipe forming and assist in core heat dissipation.
Cooling: Air cooling system balancing corrugated pipe production speed with economical operational costs.
Application: The most stable and cost-effective extrusion solution for OD 50-500mm double wall pipes.

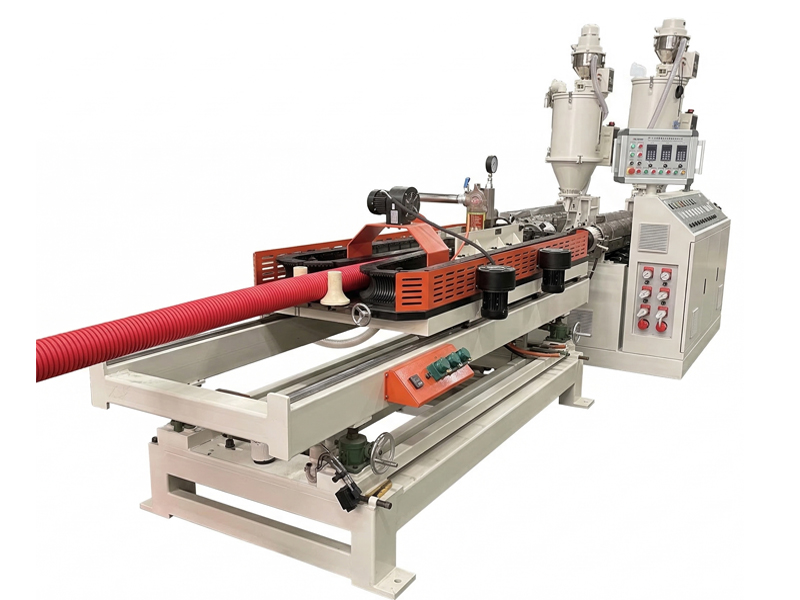

Economical DWC pipe corrugator for small diameter drainage pipes

Economical Pipe Corrugators

Frame Build: Heavy-duty cast iron main body with 38CrMoAl nitrided tracks ensuring extreme durability in continuous manufacturing.
Cooling: Combined intermittent water cooling and vortex air cooling for optimal thermal management of the pipe molds.
Mould Blocks: Uses highly cost-effective 40Cr steel moulds tightly connected to water cooling plates.
Application: Perfect economic forming solution for small diameter drainage pipes (OD 32-160mm).

DWC Pipe Corrugators Specifications

Machine Type	Suitable Pipe Diameters (mm)	Mainly Driven Motor	Vacuum Pump	Moulds Block Quantity	Pipe Forming Speed
Economical Pipe Corrugators (SBG-L Series) 40Cr Steel Molds / Combined Cooling
SBG-L 63	25-63 OD	3 kw	5.5 kw	44	1-5 m/min
SBG-L 110	40-110 OD	5.5 kw	7.5 kw	42	1-5 m/min
SBG-L 160	75-160 OD	7.5 kw	11 kw	44	1-4 m/min
Medium-Speed Pipe Corrugators (SBG-M Series) Aluminum Alloy / Air Cooling
SBG-M 200	75-200 OD	5.5 kw	7.5 kw × 2	48	1-6 m/min
SBG-M 315	110-315 OD	5.5 kw	11 kw × 2	48	1-8 m/min
SBG-M 500	200-500 OD	5.5 kw	15 kw × 2	48	0.5-3 m/min
High-Speed Pipe Corrugators (SBG-H Series) Aluminum Alloy / Pressurized Water Cooling
SBG-H 125	40-125 OD	5.5 kw	7.5 kw	36	3-11 m/min
SBG-H 180	40-180 OD	7.5 kw	7.5 kw × 2	28 or 36	4-13 m/min
SBG-H 300	100-300 ID	5.5 kw	11 kw × 2	36	2-5 m/min
SBG-H 600	200-600 ID	7.5 kw	15 kw × 2	36	0.6-4.2 m/min
SBG-H 800	200-800 ID	7.5 kw	22 kw × 2	36	0.3-4 m/min
SBG-H 1200	400-1200 ID	4 × 2.5 kw	45 kw × 3	39	0.1-2 m/min
SBG-H 1600	600-1600 ID	4 × 2.5 kw	45 kw × 3	39	0.1-2 m/min
