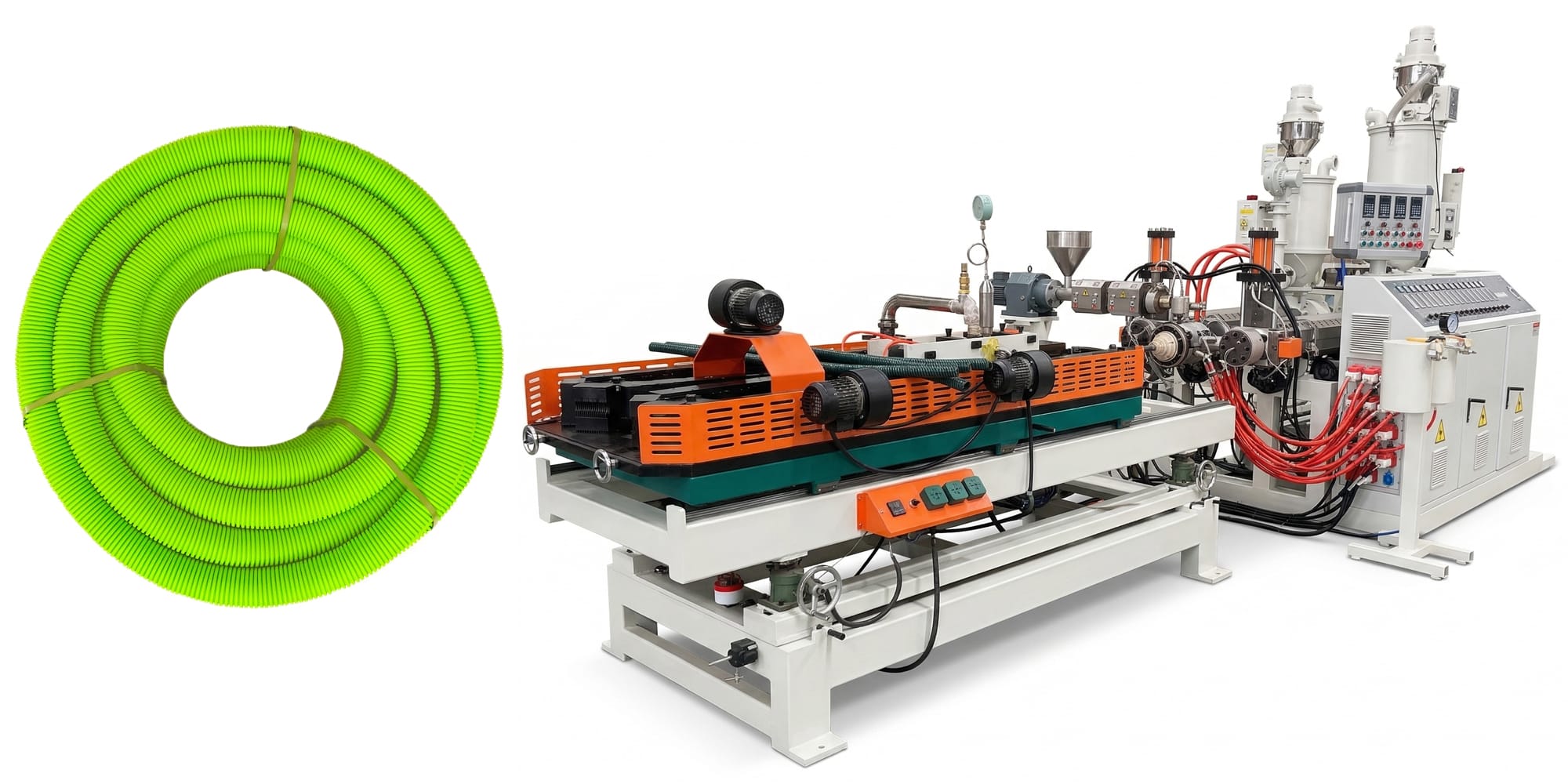

The Ultimate Durable Powerhouse: Designed for extreme durability and rapid ROI. Utilizing heavy-duty premium steel mould blocks, this highly reliable plastic pipe corrugator is the ideal choice for manufacturing small to medium diameter (OD 25-160mm) HDPE electrical corrugated conduits and drainage pipes with minimal maintenance overhead on your corrugated pipe machine.
Significantly lowers the barrier to entry for corrugated pipe machine production without sacrificing core extrusion stability.
High-strength steel mould blocks offer exceptional wear resistance and an incredibly long operational lifespan for your plastic pipe corrugator.
Streamlined mechanical and cooling structures make the pipe machine highly reliable and easy for new operators to master quickly.
Industrial-grade components optimized for rugged reliability and continuous pipe manufacturing.

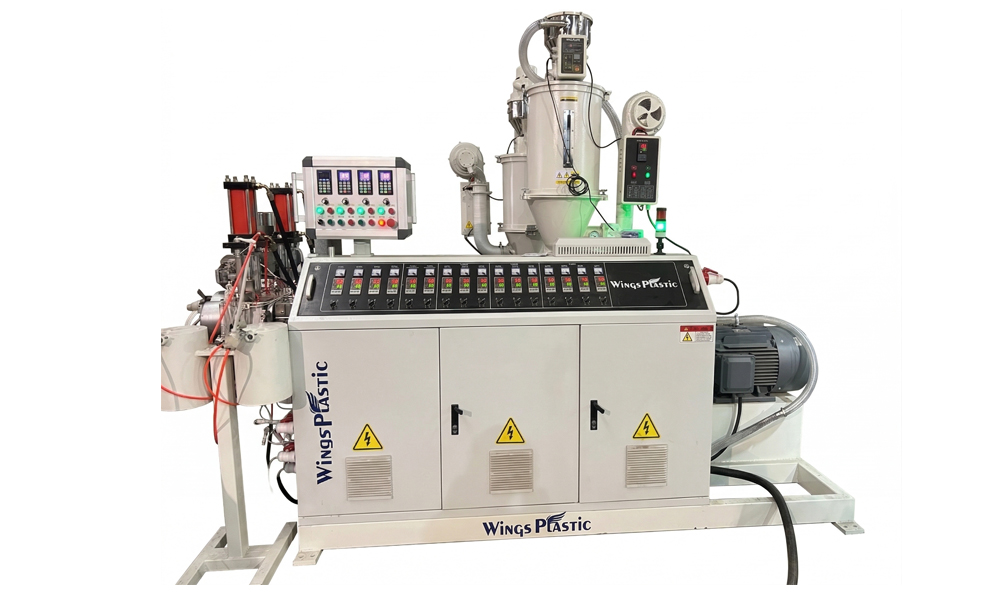

Features robust single-screw extruders tailored specifically for steady HDPE pipe processing. Equipped with 38CrMoAl nitrided screws and dependable electrical components from top brands to ensure non-stop production.

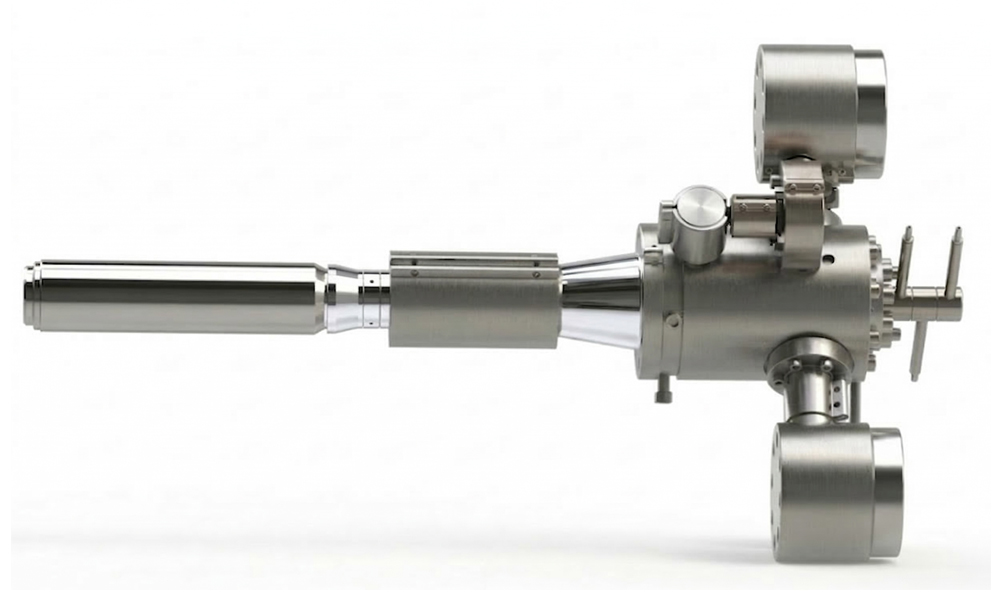

A specialized die head design that balances melt pressure and ensures even pipe wall thickness. Extremely user-friendly for operators to adjust eccentricity during initial line startup.

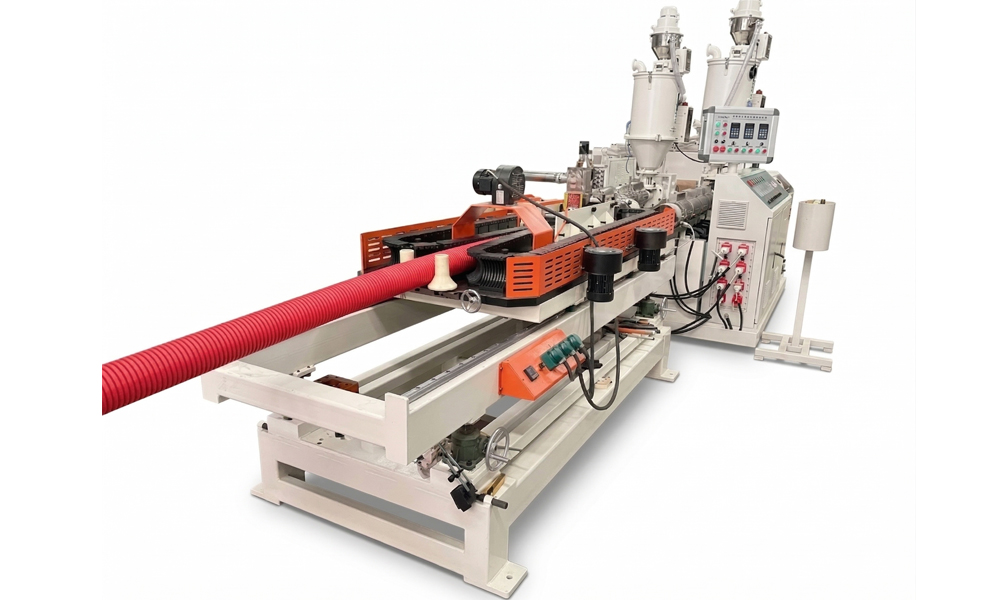

Engineered with a reinforced tracking and driving mechanism designed specifically to handle the heavier weight of steel mould blocks while maintaining synchronized, vibration-free operation.

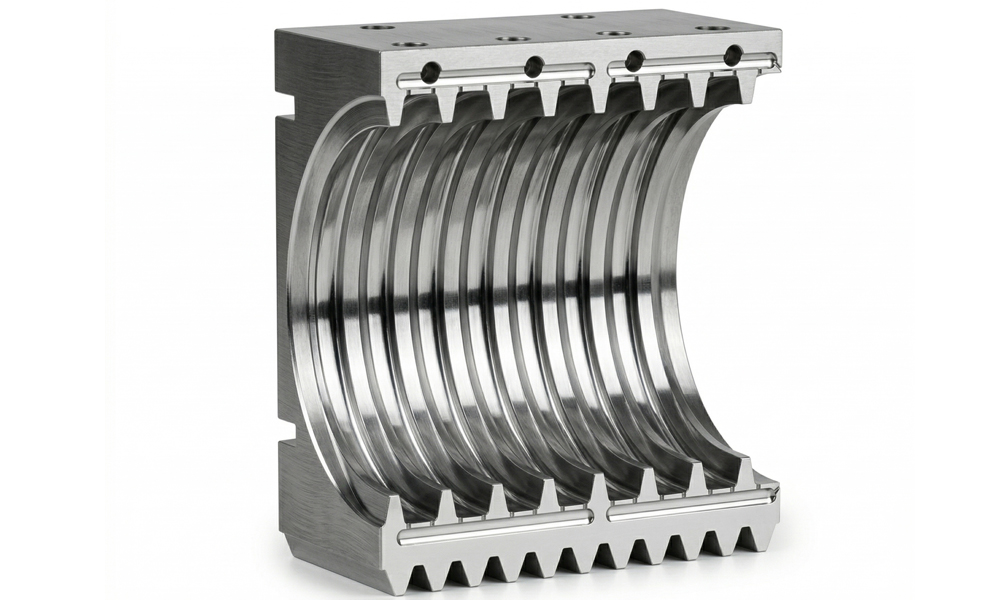

Precision-machined steel blocks that are virtually indestructible under normal operational conditions. The robust wave-profile cavities ensure the pipe structure remains perfectly intact.

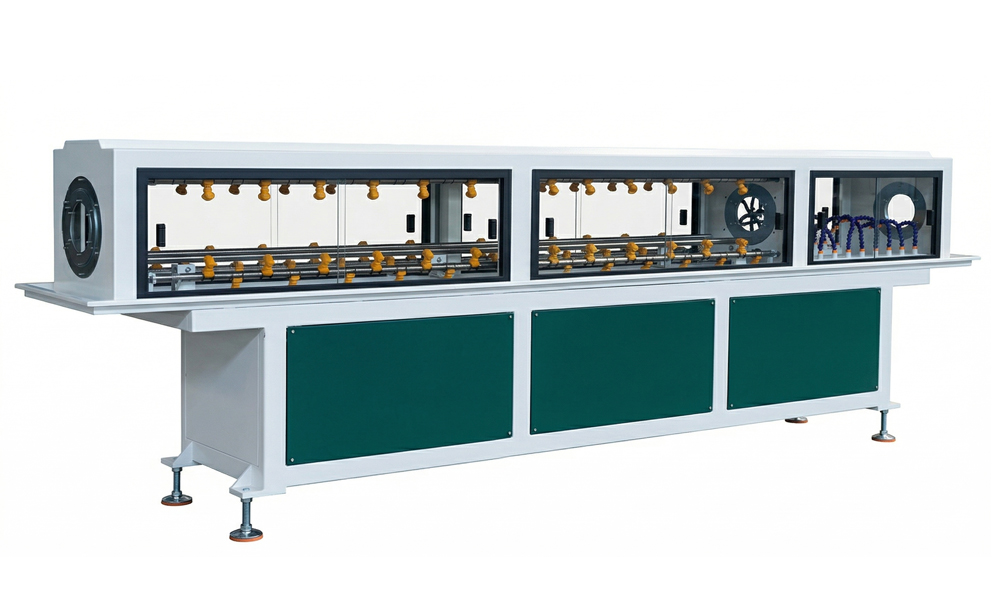

A straightforward and effective stainless steel spray cooling system that rapidly reduces the corrugated pipe's surface temperature, locking the structural shape in place.
Designed for small diameter flexible corrugated pipes. Delivers neat, automatic wire arranging, equipped with an innovative automatic pipe clamping device. Adjustable inner and outer coiling diameters for seamless packaging.
Comprehensive technical parameters for WP-50 to WP-160 Steel Mould Corrugated Pipe Machines.
| Parameter | WP-50 Line | WP-110 Line | WP-160 Line |
|---|---|---|---|
| 1. Line Configuration | |||
| Suitable Pipe Range (OD) | 25 - 50 mm | 40 - 110 mm | 63 - 160 mm |
| Material Compatibility | HDPE (Only) | ||
| Inner Layer Extruder | SJ-40/33 | SJ-45/33 | SJ-50/33 |
| Outer Layer Extruder | SJ-45/33 | SJ-50/33 | SJ-65/33 |
| Mold Material | High-Strength Wear-Resistant Steel | ||
| Cooling Method | Fan Assist + Water Spray | ||
| 2. Reference Production Speed (m/min) | |||
| OD 25 - 50 mm | 1.0 - 5.0 | - | - |
| OD 40 - 110 mm | - | 3.0 - 6.0 | - |
| OD 75 - 160 mm | - | - | 2.0 - 4.0 |
* Note: Production speeds are reference values. Steel mould lines prioritize extreme durability and continuous operation over maximum extrusion speeds.
The smartest choice for establishing a presence in emerging corrugated pipe markets.
Produces highly reliable corrugated tubes perfectly suited for burying indoor and outdoor electrical wires.
Ideal for manufacturing the small-diameter pre-embedded pipes required inside HDPE walls during modern building construction.
Cost-effective corrugated pipes are widely used in farmland drainage networks, helping agriculture manage water levels economically.
Looking for a rugged, entry-level plastic pipe corrugator? Contact our team for an incredibly cost-effective WP-Series quotation.
Get an Entry-Level Quote →
