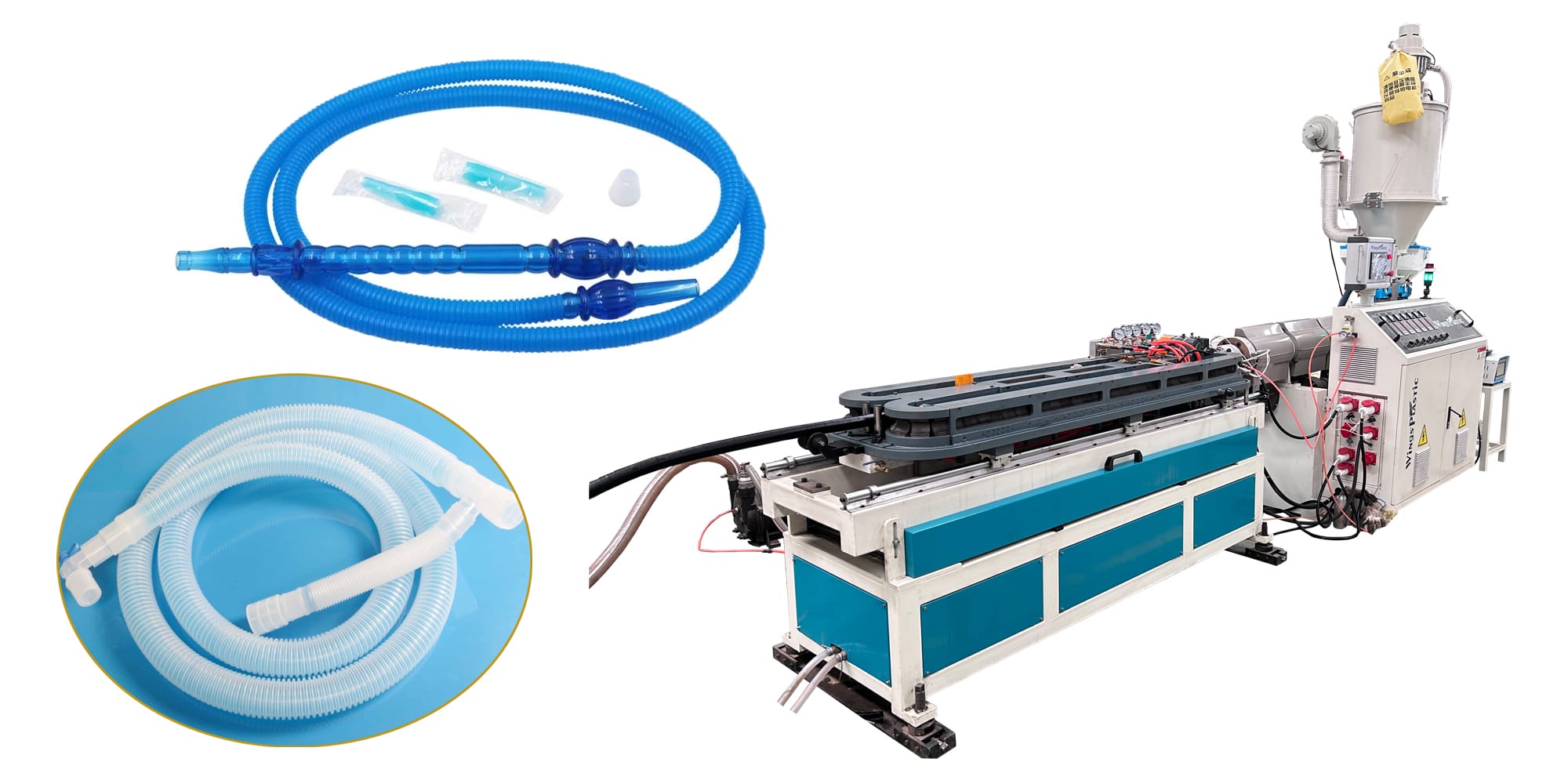

Versatile Industrial Performance: Specially engineered to meet diverse market demands from highly regulated medical manufacturing to cost-effective consumer hose markets. Operating as a flexible plastic pipe corrugator, this turnkey corrugated pipe machine line supports customizable configurations—from standard production lines to high-speed layouts—delivering flawlessly formed Shisha, Hookah, and medical hoses.
Optimized for LDPE, EVA, and PU processing. The plastic pipe corrugator components ensure full clean-room compliance for medical circuits and odor-free shisha hoses.
Configure your line with our heavy-duty pneumatic utility cutter for standard runs, or step up to the micron-precision AI vision joint-capture cutter for premium medical cuffs.
The core forming length of this corrugated pipe machine can be quickly extended or shortened via modular block sections to match any target production speed.

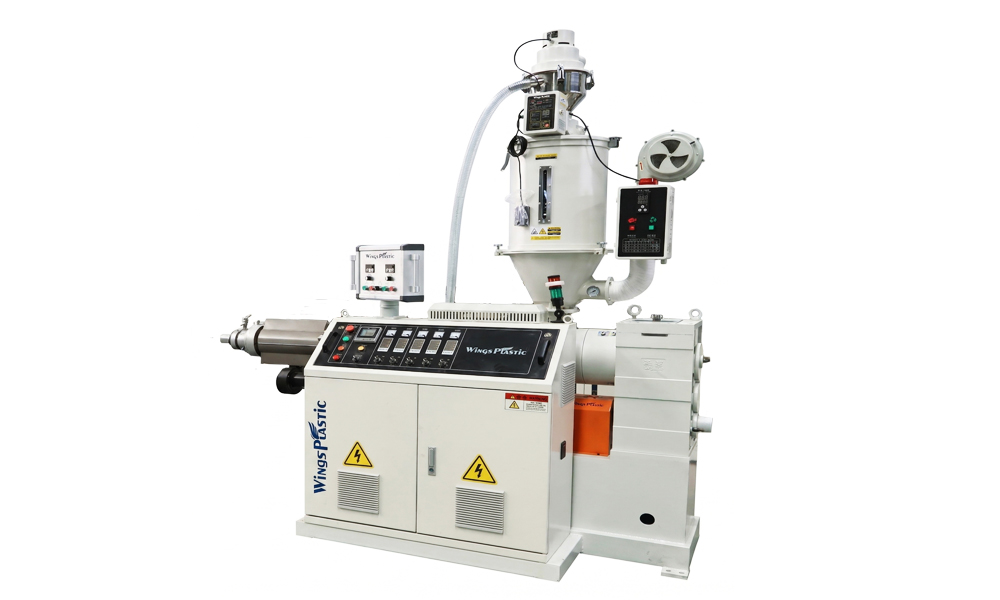

A highly adaptable extrusion system engineered for the unique rheological properties of soft medical-grade and food-grade polymers.
Tailored for stable plasticization of low-density materials (LDPE/EVA). Features a high-precision gearbox and motor for jitter-free output, ensuring long-term stable production for 10+ years.

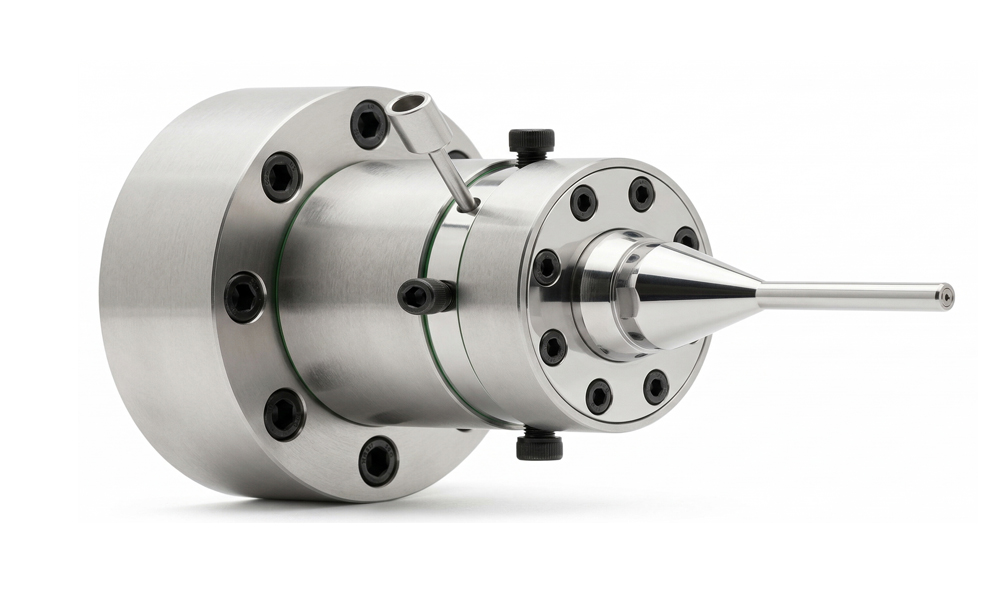

Forged from tempered 40Cr mold steel. High thermal stability prevents deformation and ensures zero material leakage, with a simplified design for rapid wall-thickness tuning.

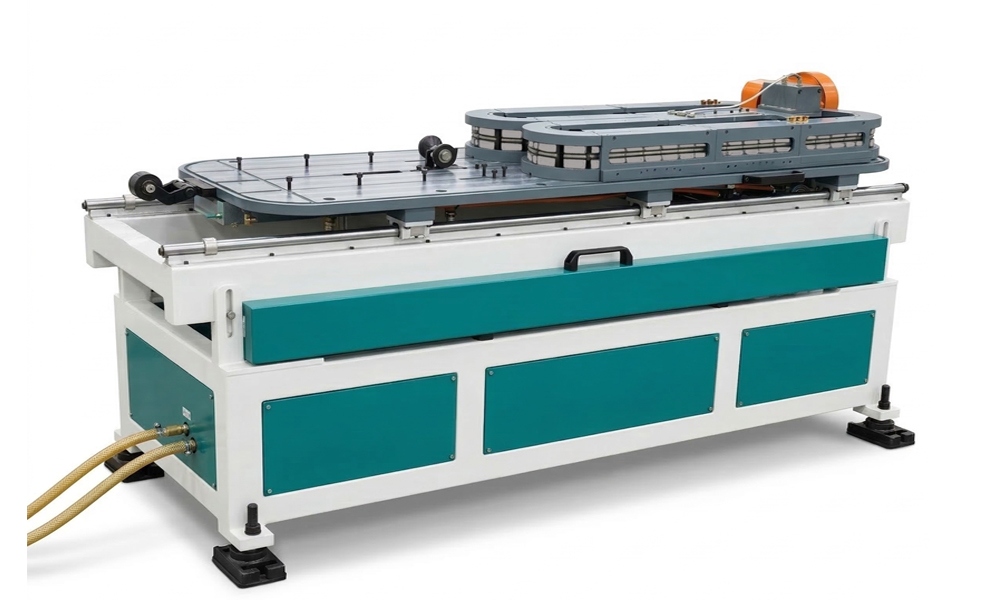

A highly flexible forming unit. The track length can be adjusted like building blocks to produce different hose segment lengths. Features an 80% coverage high-flow water cooling system for rapid and stable molding.

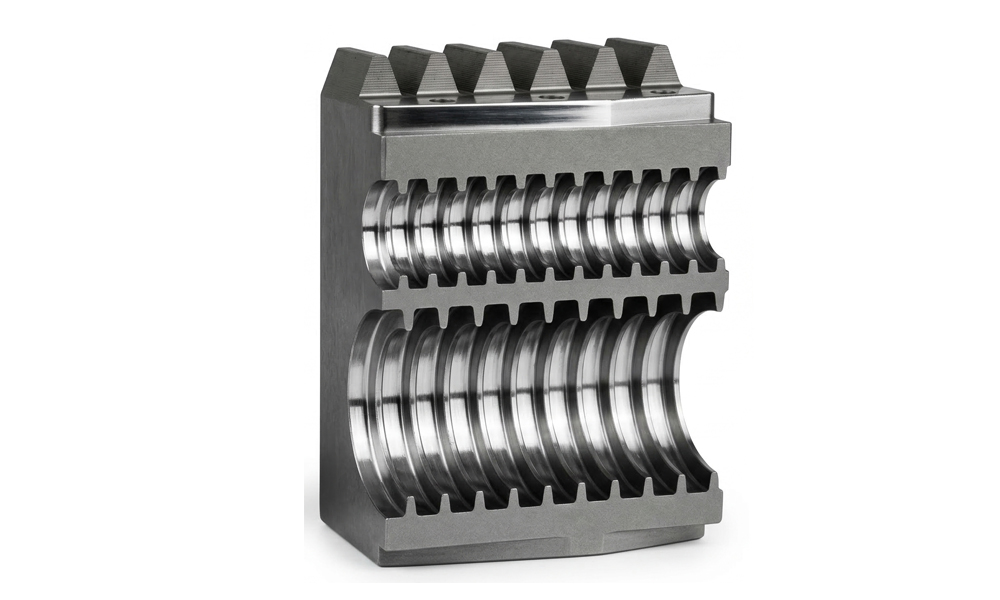

CNC-machined from forged 40Cr with a nitrided finish (Hardness >30HRC). These corrosion-resistant blocks support dual-cavity designs for non-vacuum shisha and hookah hoses, maximizing output.

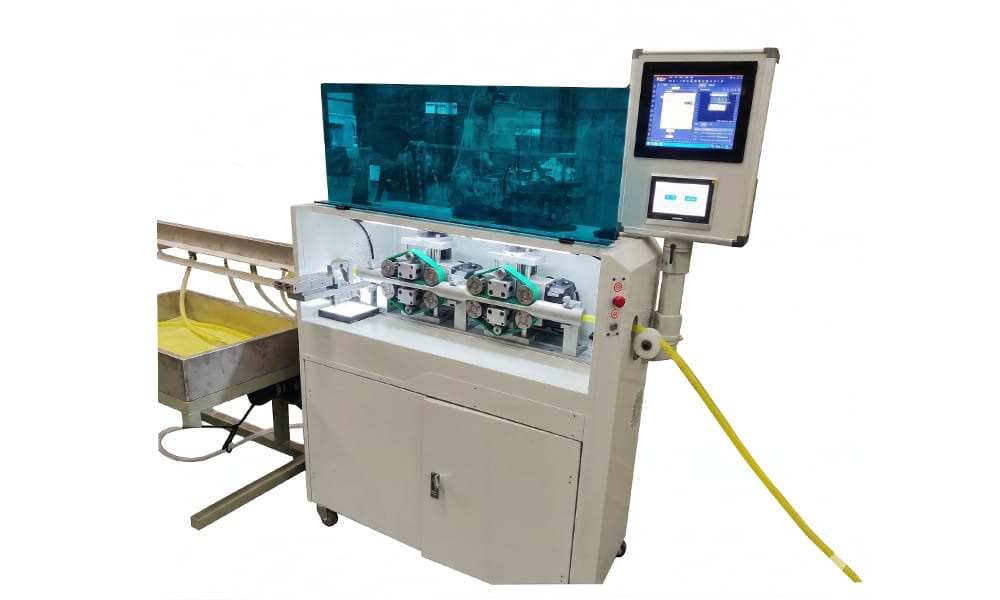

The premium choice for advanced medical breathing circuits. High-resolution cameras capture the joint profile in real-time, triggering a full-servo rotary cut at the exact geometric center of the integrated connector.

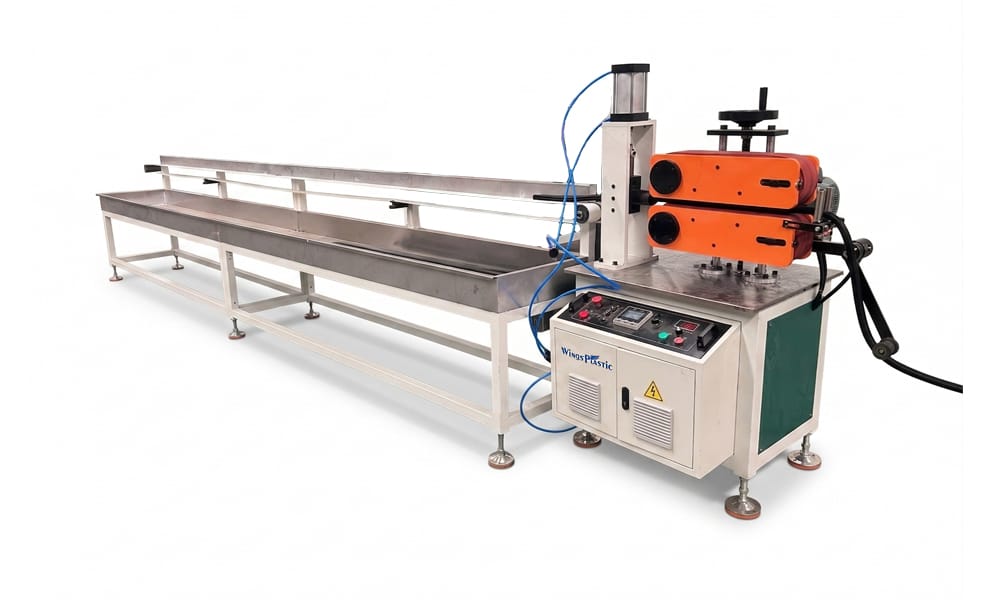

Designed for cost-effective, high-volume Shisha & Hookah hose production. Utilizes a rugged pneumatic cylinder and utility blade for simple, reliable, and easy-to-maintain length-based cutting.
Flexible configurations optimized for both standard and high-speed Shisha, Hookah, and Medical corrugated hose manufacturing.
| Model | Pipe Diameter OD (mm) | Extruder Type (LDPE/EVA/PE) | Max Forming Speed | Moulds Quantity |
|---|---|---|---|---|
| SWC-16/52 (Standard Core) | 7 - 16 | SJ40/30 (7.5kw, 20kg/h) | 10 m/min | 52 Pairs |
| SWC-52/44 (Versatile Mid-Range) | 10 - 52 | SJ45/33 (15kw, 60kg/h) | 18 m/min | 44 Pairs |
| SWC-52/72 (High Speed Line) | 10 - 52 | SJ50/33 (22kw, 90kg/h) | 36 m/min | 72 Pairs |
* Note: Max forming speed adapts based on tooling choice—optimized for high-flow continuous shisha rolls or fixed-length medical breathing circuit hoses with integrated soft connectors.
Delivering high-purity, precision-engineered solutions across specialized global healthcare and leisure markets.
Produces high-transparency, lightweight LDPE circuits with integrated soft connectors for ICU and home ventilation systems.
Manufactures food-grade, odor-free flexible hoses with highly customizable wave profiles and lengths for the fast-growing global shisha market.
Delivers chemical-resistant and anti-kink corrugated tubes required for specialized laboratory and diagnostic equipment.
Whether you need a heavy-duty line for commercial Shisha hoses or a medical-grade plastic pipe corrugator line with AI vision cutting, our team delivers the exact setup your workshop requires.
