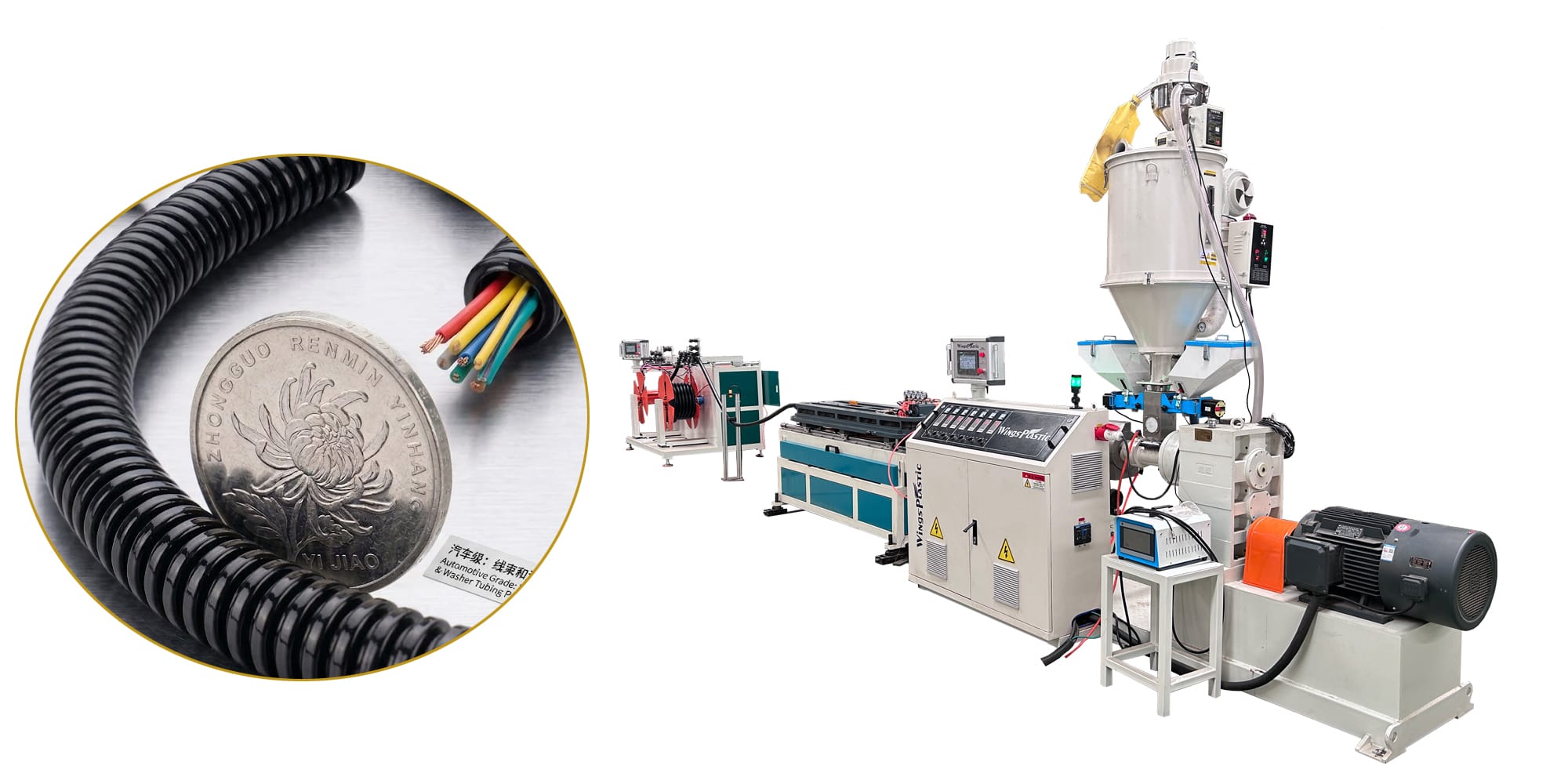

Precision Engineered for Nylon (PA): Specifically developed to overcome the strict processing challenges of high-viscosity PA materials. Utilizing our advanced vacuum forming corrugated tube machine platform, this high-speed single wall corrugator produces premium protective sleeves with exceptional chemical resistance and precise pitch profiles, satisfying the most stringent quality metrics of the global automotive electronics and nylon wire loom extrusion industries.
Specially calibrated for high-viscosity PA6, PA11, and PA12 raw materials, ensuring continuous melt flow stability and extreme wall-thickness uniformity across fine-diameter lines.
Integrates a continuous, high-efficiency vacuum suction system to force hot extrudate flawlessly into delicate wave molds, a technical necessity for high-end nylon wire loom extrusion.
Engineered for relentless 24/7 heavy manufacturing, delivering stable production speeds up to 36 m/min for critical PP auto electrical conduit and small-bore harness channels.
A perfectly balanced, highly synchronized industrial machinery setup meticulously engineered to master the distinct thermal and rheological behaviors of precision polymers.

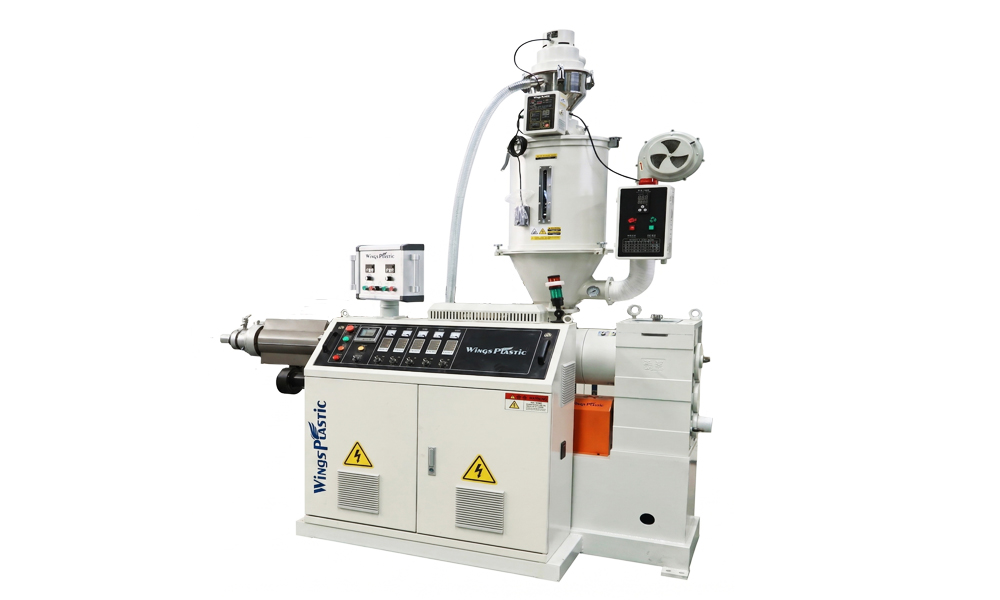

Equipped with an advanced high-speed single-screw extruder optimized for **PA/PP/PE**. Features a high-hardness nitrided barrel, heavy-duty thrust gearbox, and high-efficiency permanent magnet motor, guaranteeing stable plasticization and a dependable structural life span exceeding 10 years.

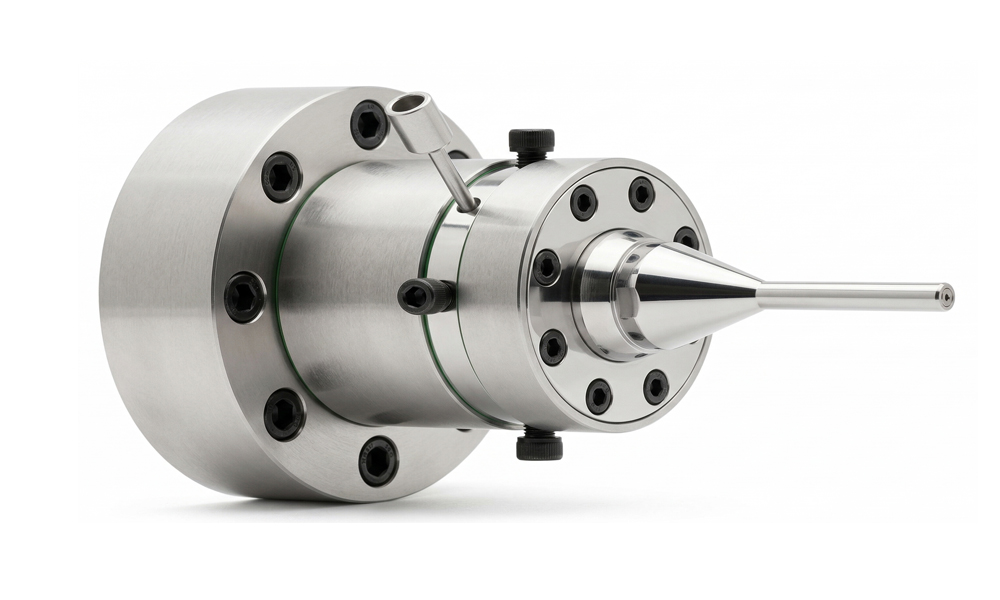

Meticulously forged from high-temper 40Cr alloy steel to guarantee high hardness and zero thermal expansion distortion under immense continuous pressure. The advanced spiral runner layout eliminates dead angles, prevents material degradation, and supports fast size changeovers.

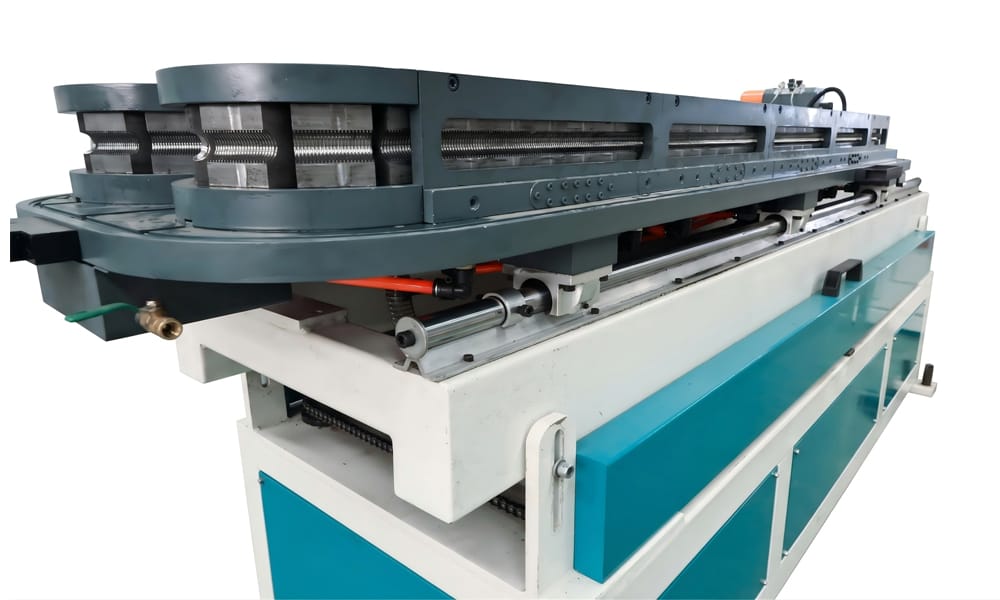

Employs an advanced closed-loop vacuum forming technique that expertly addresses the geometric molding hurdles of high-shrinkage polymers. Incorporates an expansive water-cooling manifold for high-speed operation. Note: To guarantee absolute vacuum sealing, this robust module strictly utilizes an uncompromised single-cavity design.

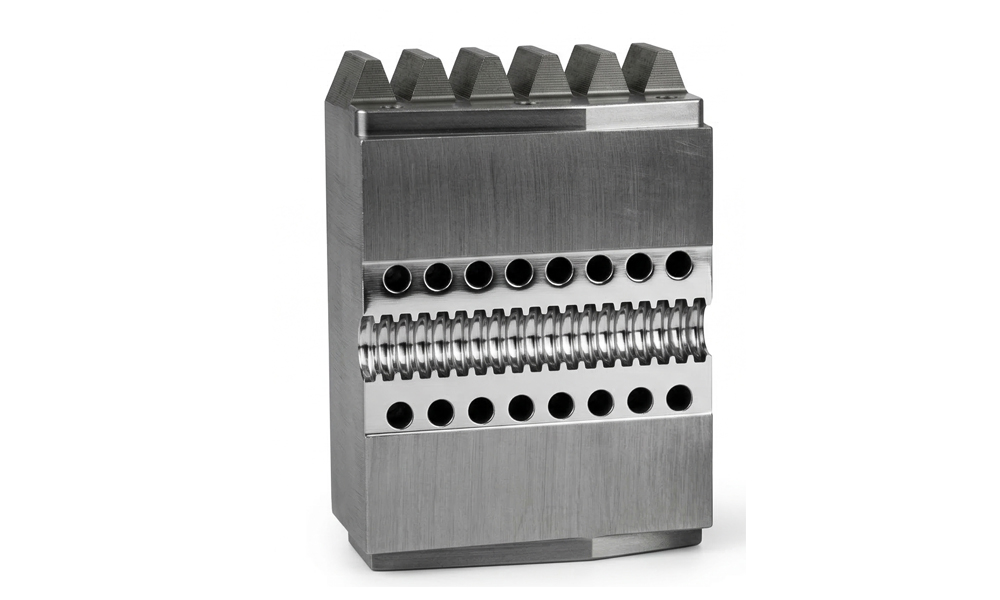

Precision CNC-machined from forged high-grade 40Cr steel blocks with nitrided, sandblasted molding surfaces (Hardness > 30HRC). Features a highly complex multi-hole vacuum suction design that generates immense, uniform clamping suction force. These ultra-durable blocks achieve the strict tolerances required by international automotive Tier-1 suppliers.

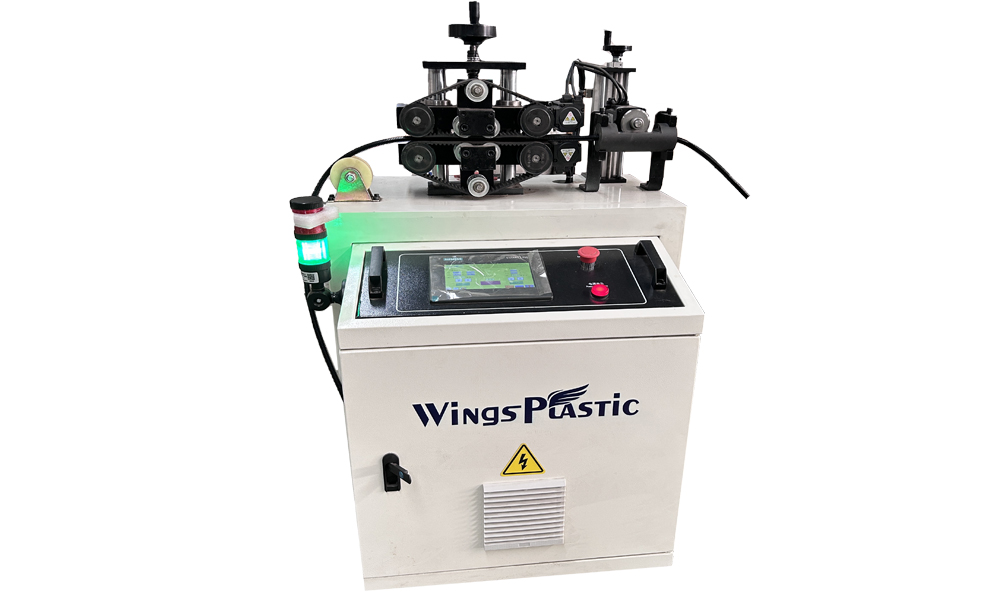

High-speed, PLC-controlled circular cutting blade module supported by full-servo synchronization. Delivers consistent, microscopic longitudinal slitting along the corrugation peaks — crucial for the rapid "easy-open" wire insertion architectures demanded by modern manufacturing plants.

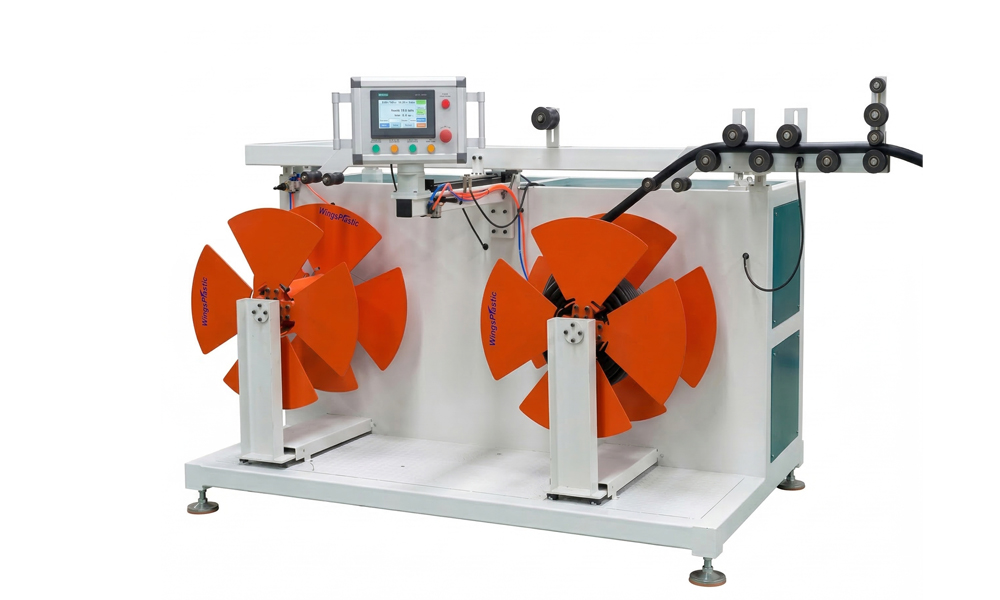

A dual-station cantilevered winding structure equipped with a smart servo-driven traversing device and full touch-screen PLC management. Features automated digital meter calculation, instant tension feedback, and auto-speed regulation to handle neat, damage-free spooling at 20-30 m/min speeds effortlessly.
Comprehensive engineering parameters for specialized PA/PP/PE automotive and industrial single wall corrugated tube manufacturing.
| Model Designation | Pipe Diameter OD (mm) | Extruder Type (PA/PP/PE Calibration) | Max Forming Speed | Standard Moulds Quantity |
|---|---|---|---|---|
| SWC-16/52 | 7 - 16 | SJ40/28 High-Torque (11kw, 25kg/h) | 10 m/min | 52 Pairs |
| SWC-52/44 | 10 - 52 | SJ45/28 Precision (15kw, 50kg/h) | 18 m/min | 44 Pairs |
| SWC-52/72 (High-Speed Flagship) | 10 - 52 | SJ65/28 High-Output (30kw, 100kg/h) | 36 m/min | 72 Pairs |
| SWC-75/60 | 25 - 75 | SJ65/28 Extended (37kw, 120kg/h) | 15 m/min | 60 Pairs |
| SWC-110/60 | 32 - 110 | SJ75/28 Heavy Duty (45kw, 150kg/h) | 12 m/min | 60 Pairs |
* Note: Continuous micro-hole vacuum assistance is highly recommended across all PA (Nylon) extrusion configurations to enforce micron-level wave profile tolerances under strict industrial conditions.
Essential heavy-duty defense and structural routing for the complex electrical wiring networks of global transit systems and industrial automation.
Produces specialized high-temperature resistant PA conduits that shelter vital electronic sensory loops from engine heat blocks, fluid corrosion, and heavy vibrations.
Outputs ultra-flexible, high-flexure nylon sleeves that organize internal signal cables inside rapid robotic joints, easily enduring millions of cyclical bending stresses.
Delivers heavy-duty, highly flame-retardant halogen-free corrugated tubes required to manage the sophisticated under-carriage wiring distribution of modern high-speed locomotives.
Ready to deploy a high-efficiency PA corrugated pipe machine or a specialized high-speed vacuum forming corrugated tube machine tailored to your exact manufacturing requirements? Contact our engineering consults for a detailed project appraisal.
